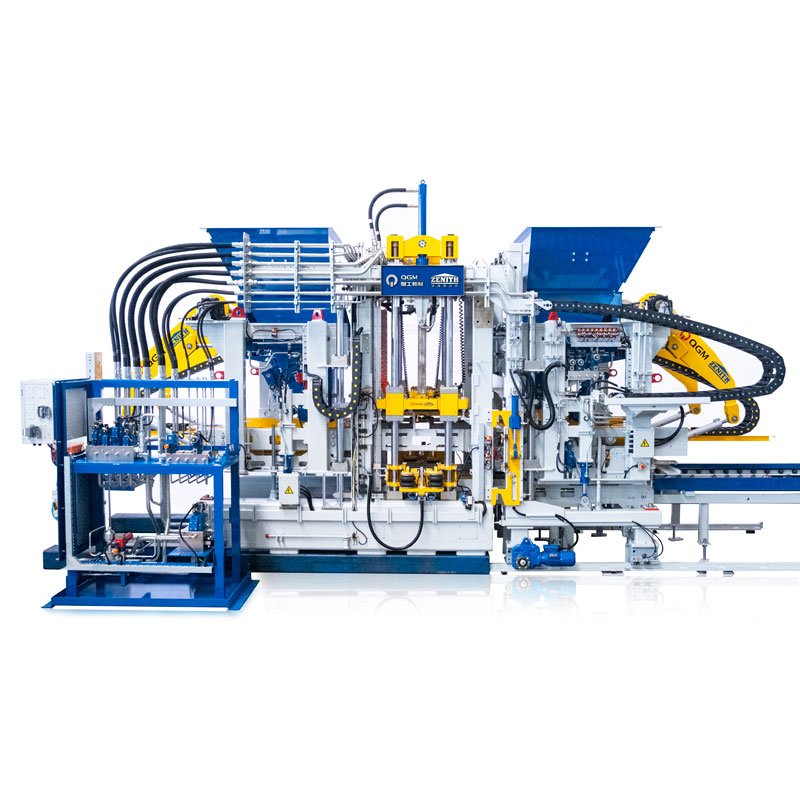

ZN1000C Concrete Block Machine

You can rest assured to buy ZN1000C Concrete Block Machine from our factory. ZN1000C block machine is manufactured in China, strictly following German technology and craftsmanship, using German technology, and is the world's leading block machine technology. German technology is known for its rigor and simplicity, and pays more attention to overall performance, efficiency and machine quality. The characteristics of ZN1000C Concrete Block Machines are more stable performance, higher production efficiency and lower failure rate. In terms of performance, efficiency, energy saving, environmental protection and other aspects, it is far ahead of other block machines on the market.

Main Technology Features

1）Frequency conversional technology control

Reduce the motor starting current and soft start function control, prolong the life of the motor. The main oscillator of ZN1000C Concrete Block Machine adopts low-frequency standby and high-frequency operation, which improves the operation speed and product quality. Reduce mechanicalaccessory and motor damage, prolong thelife of the motor and mechanical. The frequency conveter saving about 20%-40% power than the traditional conveter.

2）Germany Siemens PLC control system, Siemens touchscreen, Germany

Easy operation,low failure ratio, ZN1000C Concrete Block Machine running stability and high reliability.Use the most-advanced industrial internet technology, realize remote trouble-shooting & maintenance. PLC and touchscreen use the PROFINET internet together, convenient for system diagnosis and WEB expansion. Achieve problem diagnosis and alarm system constantly, convenient for machine maintenance and troubleshooting. PLC running data for permanent preservation.

3）Vibration System

Vibration table consists with dynamic table and static table. When vibration begin,dynamic table vibrate,static table remain static. The structure is designed to ensure the amplitude of the vibration table, so as to ensure the high quality of concrete products. Vibration table using HARDOX steel. Vibration mode: using the vibration table vibration +top mould vibration; vibration motor installation vibration damping device and air cooling device.

4）Feeding System

Motor use SEW motors, which control two mixing shafts. Feeding frame, bottom plate and mixing blade are made of high-duty HARDOX steel, the location of bottom plate can be adjusted.Feeding system have sealing device to prevent leakage. The door of the discharging gate is controlled by the SEW motor.

5）Hydraulic Station

Hydraulic pumps and hydraulic valves adopt international brands. Tube uses "Flange Connection, convenient installation and maintenance. Multi-point pressure detection point, convenient detection. Digital temperature and blockage alarm function. Motor and pump connection, flange connection, good coaxial. Dynamic proportional valve and constant power pump, speed regulation, voltage regulation, energy saving.

Technical Data

Max. Forming Area	1,100*820mm
Height of finished product	20-300mm
Moulding Cycle	15-25s
Exciting force	80KN
Pallet Size	1,200*870*(12-45)mm
Forming block number	390*190*190mm(10 blocks/mould)
Vibration table	2*7.5KW
Top vibration	2*0.55KW
Electrical control system	SIEMENS
Total weight	42.25KW
Machine Dimension	12T

Production Capacity

Block Type	Output	ZN1000C Block Making Machine
240*115*53mm	Number of formed blocks(block/ mould)	50
	Cubic meter/ hour(m3/ hour)	13-18
	Cubic meter/ day (m3/ 8 hours)	1005-1400
	Number of brick (blocks/ m3)	683
390*190*190mm	Number of formed blocks(block/ mould)	9
	Cubic meter/ hour(m3/ hour)	22.8-30.4
	Cubic meter/ day (m3/ 8 hours)	182.5-243.3
	Number of brick (blocks/ m3)	71
400*400*80mm	Number of formed blocks(block/ mould)	3
	Cubic meter/ hour(m3/ hour)	69.1-86.4
	Cubic meter/ day (m3/ 8 hours)	553-691.2
	Number of brick (blocks/ m3)	432-540
245*185*75mm	Number of formed blocks(block/ mould)	15
	Cubic meter/ hour(m3/ hour)	97.5-121.5
	Cubic meter/ day (m3/ 8 hours)	777.6-972
	Number of brick (blocks/ m3)	2160-2700
250*250*60mm	Number of formed blocks(block/ mould)	8
	Cubic meter/ hour(m3/ hour)	72-90
	Cubic meter/ day (m3/ 8 hours)	576-720
	Number of brick (blocks/ m3)	1152-1440
225*112.5*60	Number of formed blocks(block/ mould)	25
	Cubic meter/ hour(m3/ hour)	91.1-113.9
	Cubic meter/ day (m3/ 8 hours)	728.9-911.2
	Number of brick (blocks/ m3)	3600-4500
200*100*60	Number of formed blocks(block/ mould)	36
	Cubic meter/ hour(m3/ hour)	103.7-129.6
	Cubic meter/ day (m3/ 8 hours)	829.4-1036.8
	Number of brick (blocks/ m3)	5184-6480
200*200*60	Number of formed blocks(block/ mould)	4
	Cubic meter/ hour(m3/ hour)	72-90
	Cubic meter/ day (m3/ 8 hours)	576-720
	Number of brick (blocks/ m3)	576-720
