Zenith 844SC Paver Block Machine

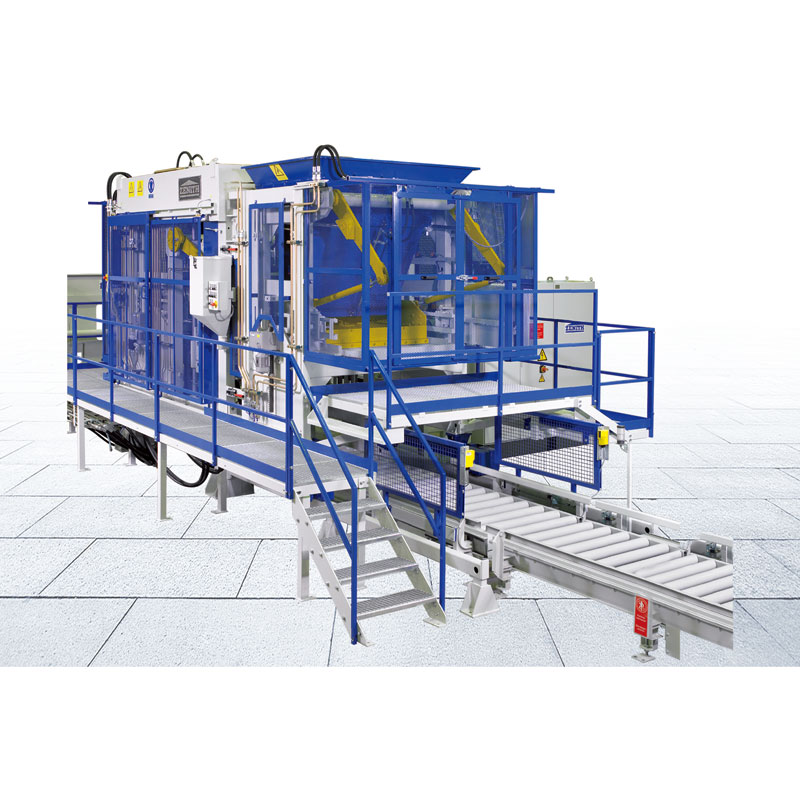

As the professional manufacturer, we would like to provide you Zenith 844SC Paver Block Machine.The Zenith 844SC Paver Block Machine is a high-capacity machine designed for the efficient production of paver blocks. It is equipped with advanced technology and features to ensure high-quality output and maximum productivity.

Main Technology Features

1) Intelligent operating: This equipment adopts PLC intelligent interactive system, which is controlled by a 15 inch touch screen and PLC, to operate full automatically, semi automatically or manually. The friendly visualized operating interface is equipped with data input and output device.

2)Fence rolling conveyor belt: This Zenith 844SC Paver Block Machine uses rolling conveyor belt, featuring with accurate movement, smooth drive, stable performance, low noise, low failure rate, long service life, etc. The added fence and continuously improved safety concept provide the greatest possible safety protection for operators.

3)Fast mould changing: Through this system, the machine sets a series of mould coefficient criterion. This system has functions of rapid mechanical locking, rapid tamper head changing device and electronic regulated height of feeding device, ensuring that various molds can be replaced at fastest speed.

4)Adjustable vibration table: The height of vibration table can be adjusted to meet the requirement of producing diversified products. The standard equipment can manufacture products with a height of 50-500mm. We can also produce products with special height using special mould following customers' demands.

5)Accurate feeding: The feeder is composed of silo, guide board table, feeding car and lever shaft. The height of the anti-twist guide board table can be adjusted and the slide rail can position and move

precisely. The lever shaft and ambilateral feeding car of rod drive are driven by hydraulic pressure, and the connecting rod is adjustable, ensuring the feeding car of horizontal moving.

Technical Data
1）Block specifications and product height

Maximum	500mm
Minimum	50mm
Max. height of brick stack	640mm
Max.production area	1,240*10,000mm
Pallet size (standard)	1,270*1,050*125mm
Hopper volume of base material	About 2100L

2)Machine parameters

Machine weight
With pigments device	About 14T
With conveyor, operating platfom, hydraulic station, pallet warehouse, etc	About 9T
Machine size
Max total length	6200mm
Max.total height	3000mm
Max. total width	2470mm
Machine technical parameters/energy consumption
Vibrating system	2 parts
Vibration table	Max.80KN
Top vibration	Max. 35KN
Hydraulic system: composite loop
Total flow	83L J min
Operating pressure	18MPa
Energy consumption
Max power	50KW
Control system	SIEMENS S7-300(CPU315)

Zenith 844 Machine Layout

Production Capacity

Block Type	Dimension (mm)	Pictures	Qty/Cycle	Cycle Time	Production Capacity (Per 8hs)
Rectangular Paver	200* 100*60		54	28s	1,092m2
Rectangular Paver (without facemix)	200*100*60		54	25s	1,248m2
UNI Pavers	225*1125*60-80		40	28s	1.040m2
Curstone	150*1000*300		4	46s	2,496 pcs
