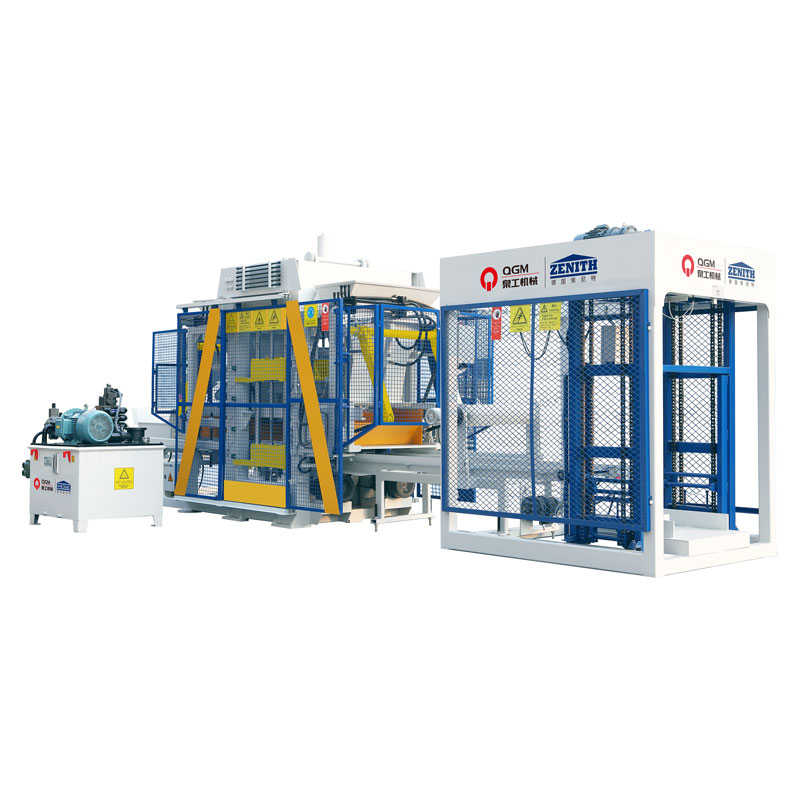

QT6 Cement Block Making Machine
  • QT6 Cement Block Making Machine - 0 QT6 Cement Block Making Machine - 0

QT6 Cement Block Making Machine

You can rest assured to buy QT6 Cement Block Making Machine from our factory. QT6 is an automatic block machine with the features of cost-effective and good performance. Same as QT10, both of them are designed and produce by QGM independently. Also it can be widely used in municipal engineering, building work and garden construction. Raw materials: Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.

Send Inquiry

Product Description
You can rest assured to buy QT6 Cement Block Making Machine from our factory. QT series concrete block machines can be used to produce blocks, curbstones, pavement bricks and other precast concrete components. The unique vibration system only vibrates vertically, reducing the wear of the machine and molds, and can achieve years of maintenance-free production.

Main Technology Features

1、QT6 Cement Block Making Machine Adopt the most advanced frequency conversional control system from German SIEMENS, plus with the Siemens Touch Screen

A. Visualization screen with easy operation;

B. Able to set up, update and amend the production perimeters, to maximize the production output;

C. Dynamic display of the system's status, automatic troubleshooting, and warning notice;

D. Automatic locking can prevent the production line from mechanical accidents caused by operation mistakes;

E. Troubleshooting via the teleservice.

2、Hydraulic pumps and valves from international brands are used.

High dynamic proportional valves and a constant output pump are adopted, so as to have a precise adjustment to the oil flow and pressure, which can provide the client with a stronger quality block, more efficient and energy-saving production.

3、Multi-shaft rotating in 360°and compulsory feeding design are used, greatly improving the density and intensity for the blocks while shortening the time for material feeding.

4. Integrated design on the vibration table not only can reduce the QT6 Cement Block Making Machine weight but also it can improve the vibration efficiently.

5. By adopting the double-line aero vibration-proof system, it can reduce the vibrating force on the mechanical parts, prolonging the machine's lifetime and reducing the noise.

6. High-precision guide bearings are used to assure the precise movement between the tamper head and the mold;

7. High-intensity steel and heat treatment are used for the machine frame, which allows the QT6 Cement Block Making Machine to have a better performance on wear-resistant.


Technical Data

Moulding Cycle 15-30s
Vibration Force 60KN
Motor Frequency 50-60HZ
Total Power 31KW
Total Weight 7.5T
Machine Size 8,100*4,450*3,000 mm (without face device)
9,600*4,450*3,000mm(with face device)


Production Capacity

Block Type Dimension(mm) Pictures Qty/Cycle Production Capacity
(Per 8hs)
Hollow Block 400*200*200 6 6,600-8,400
Rectangular Paver 200*100*60 21 23,000-29,400
Paver 225*112,5*60 15 16,500-21,000
Curstone 500*150*300 2 2,200-2,800
