Brick Batching Machine
  • Brick Batching Machine - 0 Brick Batching Machine - 0

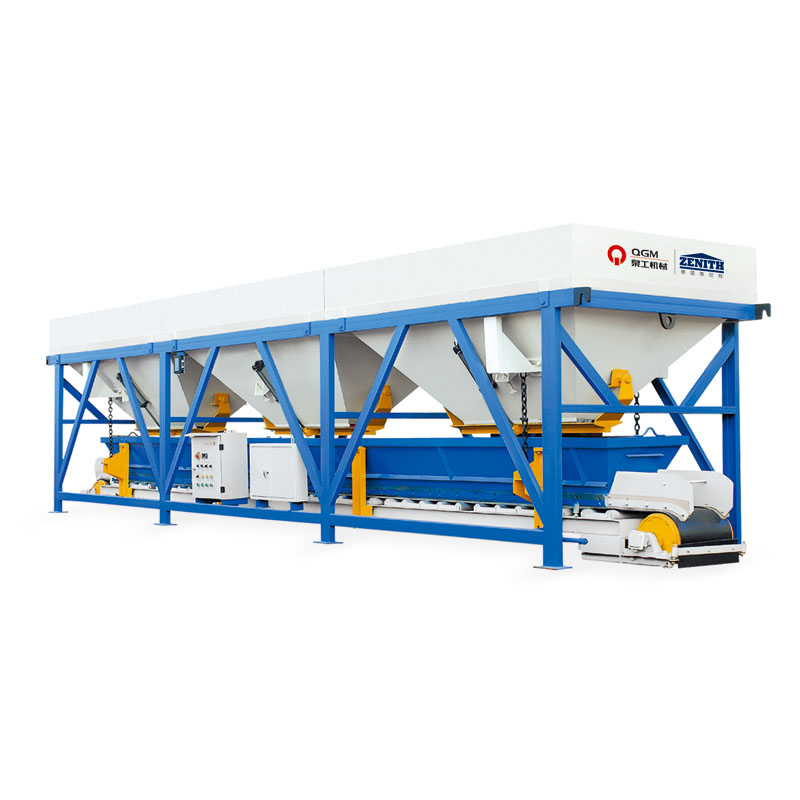

Brick Batching Machine

As the professional manufacturer, we would like to provide you Brick Batching Machine. It can be selected according to the type of local raw materials, with 3 bins to 6 bins to choose, and the amount of multiple materials can be set in the corresponding proportion.

Send Inquiry

Product Description

As the professional manufacturer, we would like to provide you Brick Batching Machine. The brick making machine uses fly ash, slag, mineral powder, tailing slag, construction waste, etc. as the main raw materials, and produces bricks of various sizes through pressing and vibration. It solves the problem of construction waste polluting the environment, and also provides a wealth of environmentally friendly building materials for the construction industry. It can be selected according to the type of local raw materials, with 3 bins to 6 bins to choose, and the amount of multiple materials can be set in the corresponding proportion. The function is to ensure the product quality and reduce the cost. The raw materials are weighed automatically by the automatic batching system and transported to the lifting hopper, which is lifted into place to pour the raw materials into the mixer for mixing.

Technical Parameters

ltem PL800 PL1200 PL1600
CBM of Weighing Bin 0.8m3 1.2m3 1.6m3
CBM of Aggregate Bin 2x4m3 3x4m3 3x6m3
Productivity 48m3/h 60m3/h 80m3/h
Weighing Accuracy ±2% +2% ±2%
Maximum Weighing 1,500kg 2,000kg 3,000kg
Type of Aggregate 2 3 3
Loading Height 2,300mm 2,400mm 3,000mm
Weighing System Electronic Electronic Electronic
Power 4.5kw 10.6kw 11.7kw
Total Weight 2,250kg 3,760kg 4,820kg
Machine Size (L*W*H) 5,600*1,560*2,760mm 8,390*2,000*2 ,800mm 9,500*2,300*3,300mm



Hot Tags: Brick Batching Machine, China, Manufacturer, Supplier, Factory, Customized, Quality, Advanced, CE
