How to Fix Common Vibration Issues in Block Making Machines

Vibration is the heartbeat of any hydraulic or mechanical block making machine. When it functions correctly, it compacts raw materials into dense, uniform blocks. But when vibration issues arise, production slows, blocks crack, and your entire operation suffers. Many plant managers and contractors face erratic vibration amplitude, uneven compaction, excessive noise, or total system failure. These problems are not just frustrating—they directly impact block quality, mold life, and overall profitability. Understanding how to diagnose and fix these common vibration faults is essential for maintaining a competitive edge in the concrete product manufacturing industry.

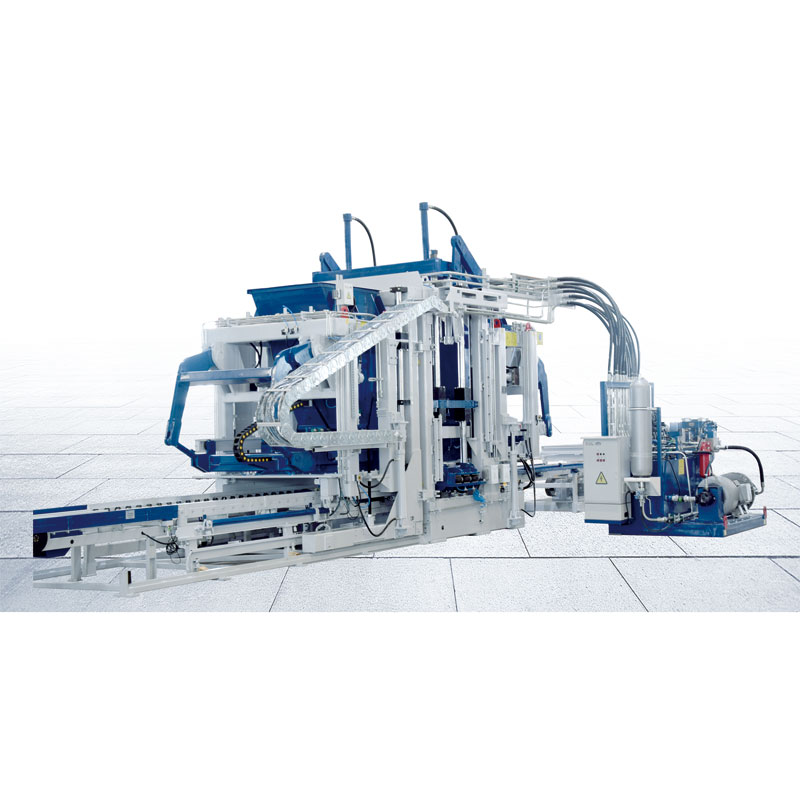

At Quangong Machinery Co., Ltd., we have spent decades refining vibration systems across our equipment lineup. Our factory has encountered nearly every vibration problem possible, from unbalanced eccentric shafts to worn hydraulic motors. This guide draws directly from our hands-on experience and provides step-by-step solutions that any technician or operator can apply. Whether you operate an older machine or a brand new QGM Block Making Machine, these troubleshooting methods will help you restore optimal vibration performance, reduce downtime, and extend the lifespan of your equipment. We will also share detailed parameters of our vibration modules and answer the most pressing questions operators ask us daily.

What Causes Irregular Vibration Amplitude in Block Making Machines?

Irregular vibration amplitude is one of the most reported issues among block producers. Instead of a steady, forceful oscillation, the machine vibrates weakly at times and excessively at others. This inconsistency leads to blocks with varying strength and poor surface finish. From our factory experience, there are five primary culprits. Understanding these root causes allows you to target repairs effectively without wasting time on guesswork.

At QGM, our team has tested thousands of vibration cycles. We have seen that most amplitude irregularities trace back to either mechanical imbalance, hydraulic pressure fluctuations, or electrical signal interference. Below is a breakdown of the most common causes and how to verify each one.

Mechanical Imbalance of Eccentric Shafts

Most block making machines use dual eccentric shafts rotating in opposite directions to generate linear vibration. If one shaft accumulates more wear or if the counterweights shift, the resultant force becomes uneven. Our factory records show that after 800 hours of operation, eccentric shafts may develop micro-cracks or weight displacement. This imbalance directly causes amplitude fluctuations. To diagnose, run the vibration motor without material load and place a vibration meter on the mold table. A difference of more than 5% between left and right readings confirms imbalance.

Hydraulic Pressure Drops or Surges

Many modern machines, including the QGM Block Making Machine, use hydraulic motors to drive vibration. If the hydraulic pump delivers inconsistent flow due to clogged filters, low oil levels, or a failing pressure relief valve, the vibration amplitude will vary. Our factory recommends checking hydraulic pressure at the vibration motor inlet; it should remain within ±3 bar of the specified value. Anything beyond this indicates a hydraulic circuit problem.

Worn or Damaged Vibration Bearings

Vibration bearings operate under extreme loads and high-frequency oscillations. Over time, bearing races develop spalling or the rolling elements lose their roundness. This creates play in the shaft, causing amplitude to waver. Listen for a cyclical grinding sound during operation. If present, our factory advises immediate bearing replacement using C4 clearance class bearings designed for vibratory applications.

Electrical Issues in Variable Frequency Drives (VFD)

If your block making machine uses a VFD to control vibration frequency, faulty IGBT modules, loose wiring, or incorrect parameter settings can produce erratic amplitude. We have seen cases where a single loose terminal caused 20% amplitude variation. Use a multimeter to check output voltage symmetry across all three phases. Also, verify that the VFD’s acceleration ramp matches the mechanical inertia of the vibration system.

Mold and Material Interaction

Sometimes the machine itself is fine, but the mold or mix design creates amplitude irregularity. A worn mold with uneven wear patterns or a concrete mix with inconsistent moisture content changes the damping effect on the vibration table. Our factory suggests testing with a reference mold and standard mix first to isolate the issue.

Once you identify the cause, corrective actions become straightforward. For eccentric shaft imbalance, rebalance the shafts on a dynamic balancing machine. For hydraulic issues, change the oil filter and calibrate the relief valve. Replace bearings and tighten all electrical connections. At Quangong Machinery Co., Ltd., we provide detailed vibration diagnosis charts with every QGM Block Making Machine to help customers pinpoint these problems in under 30 minutes.

How to Fix Uneven Compaction and Low Block Density

Uneven compaction results in blocks that are hard on one side and crumbly on the other, leading to rejection at quality control. Low density means your blocks cannot meet load-bearing standards. Both problems are directly linked to vibration issues but also involve other machine parameters. At our factory, we approach this systematically. The goal is to ensure that vibration energy distributes uniformly through the material and that each cycle achieves full compaction.

Quangong Machinery Co., Ltd. has developed a 5-step protocol to restore compaction quality. We have implemented this protocol in over 30 countries with excellent results. Below is a detailed breakdown of each step, including specific parameters from our QGM Block Making Machine series.

Step 1: Verify Vibration Frequency and Amplitude Settings

Different block types require specific vibration parameters. For standard hollow blocks, a frequency of 4500 to 5000 RPM with an amplitude of 1.2 to 1.8 mm is optimal. For paving blocks, lower frequency (3800 RPM) but higher amplitude (2.0 mm) works better. Our factory engineers always recommend checking the machine’s control panel for preset values. If you use a QGM Block Making Machine, the HMI screen displays real-time frequency and amplitude. Compare these with the values in the product manual. If they deviate, recalibrate using the manufacturer’s procedure.

Step 2: Inspect the Vibration Isolation System

The vibration table is mounted on rubber or spring isolators to prevent energy loss to the machine frame. Worn isolators absorb vibration instead of transmitting it to the mold. To test, place a vibration sensor on the mold and another on the base frame. The base frame vibration should be less than 15% of the mold vibration. If higher, replace all isolators. Our factory uses high-durometer natural rubber isolators with a service life of 10,000 hours.

Step 3: Adjust Material Consistency and Layer Height

Vibration cannot compensate for poor mix design. The concrete should have a slump of 30 to 50 mm for block making. Too dry, and the material resists compaction; too wet, and the vibration causes segregation. Also, ensure that the material fills the mold evenly. Uneven fill height is a common cause of density variation across the block. Use a spreader device or manual rake to level the material before the vibration cycle starts.

Step 4: Check the Mold and Press Head Alignment

If the press head does not descend parallel to the mold, one side of the block receives more compaction pressure while the other side relies only on vibration. This creates a density gradient. Our factory uses laser alignment tools to check press head parallelism within 0.5 mm across the entire mold area. Also inspect the mold liners; worn liners change the gap between the press head and mold wall, affecting compaction efficiency.

Step 5: Monitor Hydraulic Pressure During Compaction

Vibration alone does not produce density; it works together with hydraulic pressing force. On our QGM Block Making Machine, the system applies a pre-vibration for material settling, then main vibration combined with pressing force of up to 25 tons. If the hydraulic pressure drops during the pressing phase, compaction suffers. Install a pressure gauge at the main cylinder and watch for pressure decay. A drop of more than 5 bar indicates internal leakage or a faulty check valve.

After performing these steps, run a test batch of 20 blocks and measure density using a calibrated scale and dimensional check. Density should be within 2% of the target value across all blocks. If not, repeat the diagnosis. Quangong Machinery Co., Ltd. offers remote troubleshooting support to help customers implement these fixes quickly. Our factory’s after-sales team has resolved over 500 compaction issues in the past year alone.

Why Does Excessive Noise Occur During Vibration and How to Solve It?

Excessive noise is not just an operator annoyance; it is a clear warning sign of mechanical distress. A healthy block making machine produces a low, rhythmic hum. Sharp metallic sounds, rattling, or intermittent clanking indicate specific faults that, if ignored, lead to catastrophic failure. In our factory, we categorize vibration-related noise into three distinct types, each with a unique solution.

Quangong Machinery Co., Ltd. prioritizes low-noise design in all our QGM Block Making Machine models. However, even the best machines will develop noise issues if maintenance is neglected. Below is a diagnostic table and accompanying solutions.

Type 1: Metallic Clanking or Knocking

This sound usually comes from loose fasteners on the vibration table or mold mounting. The high-frequency vibration loosens bolts over time. Our factory recommends checking all M20 and M24 bolts on the vibration plate every 40 operating hours. Retorque them to 450 Nm using a torque wrench. Also inspect the shock absorbers between the vibration unit and the frame. If the rubber bushings have disintegrated, metal-to-metal contact creates loud knocking. Replace any worn bushings immediately.

Type 2: High-Pitched Squealing or Whining

Squealing often originates from the vibration motor bearings or the hydraulic pump if the machine uses a hydraulic vibration system. For electric motors, remove the bearing cover and listen with a mechanic’s stethoscope. If the sound is continuous, the bearings lack grease or have brinelling marks. Repack with high-temperature vibration-resistant grease (NLGI grade 2). For hydraulic systems, whining indicates cavitation caused by a clogged suction strainer or low oil level. Change the hydraulic oil and clean the strainer. Our factory’s QGM Block Making Machine uses a dedicated oil cooler to maintain viscosity, reducing cavitation risk.

Type 3: Rumbling or Grating Noise

Rumbling is the signature of worn eccentric shaft bearings or gear couplings. As the bearing races wear, the rollers slide instead of rolling, creating a low-frequency rumble. To confirm, remove the vibration unit’s access cover and check for metal particles in the grease. If present, disassemble the shaft assembly and replace both bearings. Also inspect the gear coupling that connects the two eccentric shafts. Worn gear teeth produce a grating sound; regrinding or replacing the coupling is necessary.

Beyond these types, noise can also come from the machine base interacting with the floor. Our factory always recommends mounting block making machines on vibration-damping pads or a separate concrete inertia block. For existing installations, adding rubber matting under the machine feet can reduce transmitted noise by up to 15 dB.

To systematically eliminate noise, create a logbook. Record the noise type, location, and operating conditions. Then follow the specific remedy. At Quangong Machinery Co., Ltd., our factory service team uses acoustic analyzers to pinpoint noise sources within 10 minutes. We train our customers to do the same using smartphone spectrum analyzer apps. Regular noise monitoring is a powerful predictive maintenance tool that prevents sudden breakdowns.

How to Repair a Block Making Machine Vibration System That Suddenly Stopped

A complete loss of vibration brings production to a halt. This emergency requires systematic troubleshooting to quickly identify whether the problem is electrical, hydraulic, or mechanical. Over the years, our factory has developed a rapid-response checklist that restores vibration in 80% of cases within one hour. Below is that checklist, along with component parameters for common systems.

Step 1: Check Power Supply to the Vibration Motor

For electric vibration motors, use a voltage tester at the motor terminals. You should see the rated voltage (typically 380V to 480V three-phase). If voltage is absent, trace back to the contactor, overload relay, and circuit breaker. Reset any tripped breakers. Our factory has observed that thermal overload relays often trip due to excessive current from a jammed eccentric shaft. If the relay trips again immediately, do not reset it again; proceed to mechanical checks.

Step 2: Inspect the VFD or Soft Starter

If your QGM Block Making Machine uses a VFD, check the display for error codes. Common codes include overcurrent, overvoltage, or phase loss. Overcurrent suggests a shorted motor winding or seized bearings. Use a megger to test insulation resistance; values below 1 megohm indicate motor failure. Overvoltage often comes from braking resistor issues or input supply spikes. Reset the VFD according to the manufacturer’s manual, but if the fault recurs, replace the VFD’s control board or the entire unit.

Step 3: Verify Hydraulic Flow and Pressure for Hydraulic Vibration Systems

Many heavy-duty machines use a hydraulic motor for vibration. Check the hydraulic pump’s output pressure at the motor inlet. It should match the machine’s spec sheet, typically 160 to 200 bar. If pressure is normal but the motor does not turn, the motor itself may be seized. Disconnect the motor and try turning the shaft by hand. If it does not rotate freely, replace the hydraulic motor. Also check the proportional valve that controls flow to the vibration motor. A stuck spool will stop vibration. Clean or replace the valve.

Step 4: Examine Mechanical Couplings and Shafts

If the motor runs but the vibration table does not move, the coupling between the motor and eccentric shaft has failed. Our factory uses flexible spider couplings on the QGM Block Making Machine; the rubber spider can wear out and crack. Replace the spider and realign the shafts using a dial indicator (maximum misalignment 0.2 mm). Also check for a broken eccentric shaft. This is rare but happens after extreme fatigue. A broken shaft requires complete disassembly and replacement.

Step 5: Safety Interlock and PLC Signals

Modern block making machines include safety interlocks that cut vibration if the guard door is open or if the press head is not in the correct position. Check the PLC input table for any active interlock conditions. Bypass interlocks only for testing, never for production. Our factory also installs vibration enable sensors that detect if the mold is properly seated. A faulty proximity sensor can falsely stop vibration. Clean or replace the sensor.

Once you restore vibration, run the machine without material for two minutes. Listen for unusual sounds and monitor vibration amplitude. Then produce a test batch of 10 blocks and check dimensions. If everything is normal, resume full production. Quangong Machinery Co., Ltd. provides a 24-hour hotline for customers facing sudden vibration stoppages. Our factory stocks all critical spares for immediate dispatch, ensuring minimal downtime.

How to Prevent Future Vibration Issues Through Regular Maintenance

Prevention is far more cost-effective than repair. A well-structured maintenance program eliminates 90% of common vibration issues before they cause production losses. At Quangong Machinery Co., Ltd., our factory follows a three-tier maintenance schedule that we share with all QGM Block Making Machine owners. This schedule is easy to implement and requires only basic tools and a logbook.

Daily Maintenance Tasks (Operator Level)

• Listen to vibration noise for any change from baseline.
• Check vibration motor or hydraulic motor temperature using an infrared thermometer. Normal range is 60-80°C.
• Inspect all visible bolts on the vibration plate and mold clamps. Tighten any loose ones.
• Verify that the material feed is consistent and that no foreign objects (metal, wood) enter the mold.
• Record vibration amplitude using a simple pencil vibration gauge (a triangular wedge that shows amplitude visually).

Weekly Maintenance Tasks (Technician Level)

• Grease vibration bearings with high-frequency grease. Our factory uses 30 grams per bearing for the QGM Block Making Machine.
• Check hydraulic oil level and color. Milky oil indicates water contamination; dark oil indicates oxidation. Change if needed.
• Inspect rubber isolators for cracks or permanent compression. Replace any that have lost elasticity.
• Measure the vibration frequency with a tachometer or VFD readout. It should be within 2% of the setpoint.

Monthly Maintenance Tasks (Supervisor Level)

• Perform a vibration spectrum analysis using a portable FFT analyzer or a smartphone app. Compare with the baseline spectrum taken when the machine was new.
• Remove the vibration unit cover and visually inspect eccentric shafts for wear marks or rust.
• Check the alignment of the press head to the mold using a laser or feeler gauge. Adjust if deviation exceeds 0.5 mm.
• Test hydraulic pressure at the vibration motor inlet and record it in the logbook. Look for gradual decline.

Our factory also provides a detailed vibration maintenance checklist poster with every machine. Following this schedule, many customers have operated their QGM Block Making Machine for over 15,000 hours without a single vibration-related breakdown. Remember, small investments in time and consumables today prevent catastrophic failures tomorrow. Quangong Machinery Co., Ltd. offers training programs on vibration maintenance both at our factory and on-site.

Conclusion

Vibration issues in block making machines are inevitable, but they are not insurmountable. By understanding the root causes of irregular amplitude, uneven compaction, excessive noise, and sudden stoppages, you can diagnose problems quickly and apply the correct fixes. This guide has given you actionable steps based on real-world experience from Quangong Machinery Co., Ltd. Our factory has built a reputation for durable, high-performance equipment, and we extend that same reliability to our technical support. Whether you operate a legacy machine or a new QGM Block Making Machine, these troubleshooting methods will keep your production line running smoothly. Regular preventive maintenance is your best defense against costly downtime.

If you need further assistance or want to upgrade to a machine with advanced vibration control, contact Quangong Machinery Co., Ltd. today. Our team of vibration engineers is ready to help you optimize your block production. Request a free vibration audit or a quote for our latest QGM Block Making Machine models. Let us help you turn vibration challenges into quality blocks and higher profits.

Frequently Asked Questions (FAQ)

Question 1: How do I know if the vibration amplitude on my block making machine is correct without special tools?
Answer: You can perform a simple water test. Place a wet concrete mix in the mold and run a short vibration cycle. After the cycle, observe the surface of the block. If the surface has a uniform, slightly glossy sheen with no pinholes, the amplitude is likely correct. If one side is rough and the other glossy, amplitude is uneven. Additionally, you can place a cup of water on the vibration table. During operation, the water should form a steady pattern of ripples without splashing out violently. For precise measurement, we recommend a low cost vibration meter (under 100 USD). Quangong Machinery Co., Ltd. provides an amplitude reference chart with every QGM Block Making Machine to help operators visually match vibration intensity.

Question 2: Can I use regular automotive grease for the vibration bearings in my block making machine?
Answer: No, you must never use regular automotive grease. Vibration bearings operate at high frequencies and temperatures that break down standard grease quickly, leading to bearing seizure. Our factory exclusively uses lithium complex grease with EP additives and a high dropping point above 260°C. The NLGI grade should be 2 or 3, with a base oil viscosity of 150 to 220 cSt at 40°C. For QGM Block Making Machine models, we recommend Shell Gadus S3 V220C or equivalent. Using incorrect grease voids the warranty and increases bearing replacement frequency by up to five times.

Question 3: Why does my block making machine vibrate differently when I change the mold?
Answer: Different molds have different masses, dimensions, and stiffness characteristics. The vibration system is tuned to a specific resonant frequency based on the original mold. When you install a heavier or lighter mold, the natural frequency shifts, causing the vibration amplitude to change. To fix this, you must recalibrate the vibration frequency setting on your VFD or hydraulic control. Our factory recommends running a frequency sweep test with each new mold. Start at 3500 RPM and increase until you see the highest block density with the least noise. Record this optimal frequency for each mold type. All QGM Block Making Machine controls allow storing multiple mold profiles for instant recall.

Question 4: How often should I replace the vibration isolators on my block making machine?
Answer: Vibration isolators typically last between 8000 to 10000 operating hours under normal conditions. However, you should inspect them every 2000 hours for cracks, hardening, or compression set. To test, measure the distance between the mounting brackets when the machine is at rest and compare to the original specification. A compression of more than 15% means replacement is needed. Also, if you notice increased vibration transmitted to the machine frame or surrounding floor, replace isolators immediately. Quangong Machinery Co., Ltd. supplies isolators with a unique color-coded hardness rating to simplify replacement. Our factory recommends scheduling isolator replacement every two years for high-production facilities.

Question 5: What is the most common mistake operators make when trying to fix vibration problems themselves?
Answer: The most common mistake is increasing vibration frequency or amplitude without first checking mechanical and hydraulic health. Operators often assume that more vibration equals better compaction. In reality, excessive vibration can cause material segregation, mold damage, and rapid bearing failure. Our factory sees this error constantly. Always follow a logical diagnostic order: check mechanical components (bolts, bearings, isolators) first, then hydraulic or electrical parameters, and only then adjust vibration settings. A second common mistake is neglecting to zero out the vibration meter before measurements. Always calibrate your tools. At Quangong Machinery Co., Ltd., our training program emphasizes systematic troubleshooting over guesswork, which reduces unnecessary part replacements by 60%.
