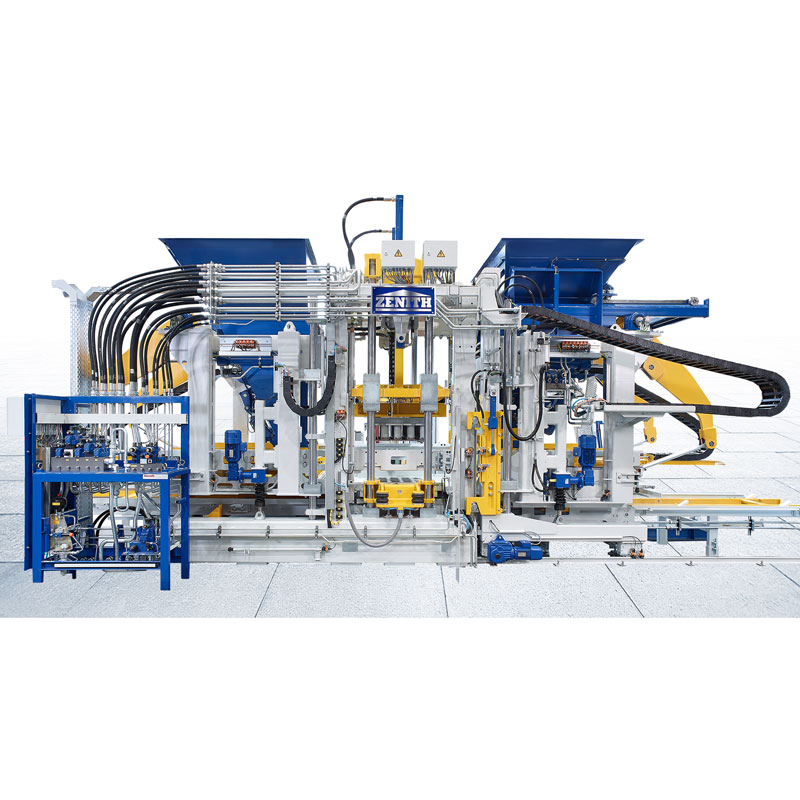

What Safety Features Are Included in Germany Zenith Block Machine Systems?

In the heavy machinery industry, safety is not an optional extra—it is the foundation upon which reliable production is built. The Germany Zenith Block Machine, a cornerstone of modern concrete block manufacturing, is engineered with a comprehensive and layered safety architecture that protects operators, maintenance personnel, and the equipment itself. At QGM, our factory has been manufacturing these systems for over two decades, and we have embedded safety into every stage of the design process. We do not view safety as a checklist of features; we view it as an integral part of the machine's operational DNA. The safety features in a Germany Zenith Block Machine are not merely add-ons; they are woven into the hydraulic, electrical, and mechanical systems, creating a protective web that prevents accidents and ensures peace of mind. This article will dissect these safety layers, from the fundamental physical guards to the advanced electronic monitoring systems, providing a comprehensive understanding of how the Germany Zenith Block Machine protects its users.

The safety philosophy behind the Germany Zenith Block Machine can be described as "defense in depth." This means that no single point of failure can lead to a hazardous situation. Multiple, independent safety systems work in concert to prevent, mitigate, and respond to potential risks. For instance, the hydraulic system is equipped with pressure relief valves, burst discs, and pilot-operated check valves that prevent uncontrolled movements. The electrical system features redundant safety relays, E-Stops, and motor overload protection that can shut down the machine instantly. And the mechanical design incorporates physical guards, interlocked doors, and two-hand controls that prevent accidental access to dangerous areas. In this article, we will explore these features in detail, breaking down how they function individually and how they integrate to create an intrinsically safe production environment. Whether you are a plant manager, a safety engineer, or an operator, this guide will provide you with the technical knowledge to appreciate the safety integrity of a Germany Zenith Block Machine.

Table of Contents

• 1. How Do the Hydraulic Systems Provide Multiple Layers of Safety?
• 2. How Does the Electrical Control Architecture Prevent Hazards?
• 3. What Are the Key Technical Specifications of the Safety Features?
• 4. How Are Safety Features Validated and Maintained in Daily Operation?
• Frequently Asked Questions (FAQ)
• Conclusion and Safety Consultation

How Do the Hydraulic Systems Provide Multiple Layers of Safety?

The hydraulic system is the powerhouse of the Germany Zenith Block Machine, generating the immense forces required to compress concrete into solid blocks. With pressures often exceeding 280 bar, the potential energy stored in the system is enormous. The safety features built into the hydraulic circuit are not just about preventing failure; they are about preventing catastrophic failure and ensuring controlled operation. The safety architecture of the hydraulic system can be understood as a series of protective "zones," each designed to contain and manage a specific type of fault.

Zone 1: Over-Pressure Protection – The hydraulic circuit is equipped with multiple pressure relief valves, each calibrated to a specific set point. The primary relief valve is set to open at 300 bar, which is 20 bar above the maximum working pressure. If pressure exceeds this, the valve opens and diverts oil back to the tank. A secondary, redundant relief valve is set at 320 bar, providing a backup if the primary valve fails. Additionally, our Germany Zenith Block Machine is equipped with a high-pressure switch that triggers an alarm and shuts down the pump if the pressure reaches 310 bar, adding an electronic layer of protection before the mechanical relief valves are even tested.

Zone 2: Movement Control – Preventing unintended movements is critical. The hydraulic cylinders that lift the mold table, compress the mix, and eject the blocks are controlled by pilot-operated check valves. These valves ensure that the cylinder will not move unless hydraulic pressure is actively applied in the correct direction. This means that even if a hydraulic line bursts or the control valve fails, the cylinder will remain locked in its current position, preventing a sudden, uncontrolled drop of a heavy mold or the compression plate.

Zone 3: Sequential Interlocks – The hydraulic operations of the Germany Zenith Block Machine are governed by a precise sequence. A series of pressure switches and proximity sensors ensure that one operation is fully completed before the next begins. For example, the ejection cylinder cannot retract until the compression cylinder has fully returned to its home position. This logical interlocking prevents "collision" scenarios where two opposing cylinders could try to move simultaneously, which could cause mechanical damage and potential hazards.

Zone 4: Accumulator Safety – The hydraulic system uses accumulators to store energy for fast pressing and ejection strokes. These accumulators are equipped with burst discs that are designed to rupture at a pressure far exceeding the normal operating range, safely venting the gas charge to the atmosphere and preventing a violent rupture. The machine also includes a manual dump valve that allows the accumulator to be depressurized completely during maintenance, ensuring zero stored energy before anyone enters the press area.

The collective effect of these features is a hydraulic system that is not just powerful, but also remarkably safe. Our factory's testing has demonstrated that even in the unlikely event of multiple component failures, the Germany Zenith Block Machine can still be brought to a safe, stopped state without causing harm to personnel or damage to the machine.

How Does the Electrical Control Architecture Prevent Hazards?

While the hydraulic system provides the muscle, the electrical control system is the brain—the part that decides when and where to apply force. The Germany Zenith Block Machine's electrical safety architecture is built around the principle of "failsafe" operation. This means that the natural, de-energized state of the system is a safe state. To explain how this is achieved, we can look at the control hierarchy as a "safety pyramid," with each level providing a backup for the one above it.

Level 1: The Master Safety Relay – At the base of the pyramid is the master safety relay. This is a dedicated, hard-wired component that monitors the E-Stop buttons, door switches, and the light curtain. Unlike a PLC, which can be programmed, the safety relay is a simple, verified circuit that cannot be overridden by software. If any of its monitored inputs are activated, the relay physically removes power from the motor contactors and hydraulic valves, bringing the machine to an immediate stop. This is the ultimate failsafe.

Level 2: The Programmable Safety Controller (PSC) – Above the master relay is a PSC, which is used for more complex safety functions. The PSC monitors the speed of the hydraulic pump, the position of the press, and the pressure in the system. It is programmed to detect anomalies, such as a sudden pressure drop (which could indicate a broken pipe) or an unexpected acceleration of a cylinder. If these are detected, the PSC initiates a controlled stop, which is smoother and less damaging to the machine than an emergency stop, but equally safe.

Level 3: The Human-Machine Interface (HMI) and Diagnostics – The top level of the pyramid is the HMI, which provides the operator with real-time information about the machine's safety status. The display shows which doors are open, the status of the hydraulic safety valves, and the position of the press. If a safety device is activated, the HMI shows a clear, plain-English message explaining the cause. This helps operators quickly identify and resolve issues without needing to open the control cabinet and trace wires, improving both safety and uptime.

Level 4: Motor Protection and Thermal Monitoring – Each motor in the Germany Zenith Block Machine is protected by an electronic motor protector that monitors current and temperature. If a motor overheats or draws excessive current, the protector cuts power, preventing electrical fires. Similarly, the hydraulic oil temperature is continuously monitored; if it exceeds a safe threshold, the machine issues a warning and, if the temperature continues to rise, automatically shuts down the production cycle to prevent damage to the hydraulic components.

The electrical control architecture of the Germany Zenith Block Machine is designed to be self-monitoring. The safety systems are continuously tested during the machine's operation, and any fault is immediately flagged. This ensures that the safety features themselves are always in a state of readiness. At Quangong Machinery Co., Ltd., we believe that the best safety feature is one that you don't need to think about because you know it's always working.

What Are the Key Technical Specifications of the Safety Features?

Understanding the technical specifications of the safety features on a Germany Zenith Block Machine is essential for proper selection and validation. These specifications are not just numbers; they are the quantifiable measures of the machine's protective capabilities. Our factory provides a detailed safety data sheet with every machine, and the table below provides a summary of the key technical parameters that define the safety system. This data is used by safety engineers to integrate the machine into a plant-wide safety system and to calculate the performance level (PL) and safety integrity level (SIL) of the entire production line.

Beyond these standard components, the Germany Zenith Block Machine includes several additional safety-related engineering details. The hydraulic tank is designed with a raised suction strainer and a magnetic plug to capture metallic debris, preventing contamination of the solenoid valves. The electrical enclosure is IP65 rated, meaning it is dust-tight and protected against low-pressure water jets, ensuring that safety circuits are not compromised by a simple washdown. The control panels are equipped with an emergency stop that is wired in a duplex configuration, meaning that a single broken wire cannot disable the E-Stop function. These engineering details, while subtle, are critical to ensuring that the safety specifications are met over the machine's operational life, not just on the day it leaves the factory.

Furthermore, our factory provides a full set of certification documentation for all safety-related components. This includes the CE declaration of conformity, as well as test reports for the certified performance levels of the safety functions. This traceability is crucial for plant safety officers who need to demonstrate compliance with occupational health and safety regulations (e.g., OSHA in the US or PUWER in the UK). With the Germany Zenith Block Machine, you are not just getting a machine; you are getting a fully documented safety system.

How Are Safety Features Validated and Maintained in Daily Operation?

Having sophisticated safety features is only half the battle. They must be properly validated on start-up and maintained throughout the machine's life. The Germany Zenith Block Machine is designed to make this validation process straightforward and systematic. Our factory has developed a comprehensive "Safety Validation Protocol" that is used during commissioning and is recommended for annual recertification. This protocol turns the validation process into a structured checklist that can be completed by trained maintenance personnel.

Pre-Start Safety Check (Operator Level) – Before the machine is started for the day, a quick visual inspection is critical. This includes verifying that all safety guards are in place and that the light curtains are aligned and free from obstruction. The operator must also check that the E-Stop buttons are not locked and that the two-hand controls are functioning. A simple test sequence is performed: the operator attempts to start the machine while standing in the light curtain zone, ensuring that the machine does not start. This confirms the light curtain is operational. The machine's PLC records these daily checks, providing a log of safety compliance.

Weekly Functional Test (Maintenance Level) – More detailed tests are performed weekly. This includes a hydraulic system test: the operator will stall the press against the mold at low pressure and monitor the pressure decay, verifying that the pilot-operated check valves are holding the cylinder in position. The E-Stops are tested individually to ensure they all stop the machine. The machine's control system will generate a report, indicating which safety component was tested and when.

Annual Recertification (Engineering Level) – The most comprehensive validation is the annual recertification, which is often required by insurance companies and regulatory bodies. During this process, a certified technician from our factory or an approved third-party tests the functionality of every safety component. The hydraulic relief valves are calibrated on a test bench to confirm their cracking pressure. The response time of the safety relays is measured with an oscilloscope to ensure it is within the 50ms specification. This annual recertification provides a high degree of confidence that the machine is operating safely.

Preventive Maintenance Schedule – The Germany Zenith Block Machine has a scheduled maintenance plan for all safety-critical components. For example, the hydraulic pilot-operated check valves are inspected and reseated every 12 months. The light curtains and door switches are checked for cleanliness and proper alignment every six months. The E-Stop contacts are verified for contact resistance every 18 months. This proactive maintenance ensures that the safety features do not degrade over time, maintaining the machine's safety integrity.

In addition to these structured validation and maintenance procedures, the Germany Zenith Block Machine is equipped with a diagnostic system that continuously monitors the health of the safety components. For example, the light curtain has a self-diagnostic function that checks the internal electronics for faults and flashes a specific error code if an issue is detected. The machine's PLC monitors the hydraulic pump motor current and will generate a warning if the motor draws more current than the baseline, indicating a potential overloading or a pump fault. By combining a structured validation process with continuous diagnostic monitoring, we provide a Germany Zenith Block Machine that not only includes safety features but also ensures they remain effective over the machine's entire operational life.

Frequently Asked Questions (FAQ)

Question 1: What is the difference between the "Emergency Stop" and the "Safety Stop" on a Germany Zenith Block Machine?

Answer: The Emergency Stop (E-Stop) is the ultimate safety button. It immediately removes power from all motors and hydraulic valves, bringing the machine to a rapid halt. This is an action that protects personnel in an emergency but can be hard on the mechanical components. The Safety Stop is a more graceful stop. It is triggered by the programmable safety controller when it detects an anomaly, such as a door opening. A Safety Stop finishes the current cycle (if possible) and then parks the press in the safe, open position before locking the systems. This is the preferred reaction as it protects both the operator and the machine. Our Germany Zenith Block Machine includes both, providing a response appropriate to the level of risk.

Question 2: How can I be sure that the safety systems on the Germany Zenith Block Machine will not be bypassed by operators?

Answer: Preventing bypassing is a critical design requirement. The machine's safety circuitry is physically isolated from the standard control circuits. The safety logic is implemented using dedicated, hard-wired relays, not just PLC software. The safety relays are enclosed and their wiring is protected. Any attempt to bypass a safety input, such as shorting a door switch, would require opening the control panel and actively rewiring it—an action that is obvious and violates standard safety protocols. Furthermore, the machine's PLC logs any safety-related interventions. The use of mechanical interlocks on doors also makes physical bypass difficult. Our experience shows that with proper training and safety culture, bypassing is extremely rare.

Question 3: What is the requirement for the two-hand control on the Germany Zenith Block Machine?

Answer: The two-hand control on the Germany Zenith Block Machine is a critical safety feature for the pressing operation. It is a Type IIIC control according to ISO 13851, requiring two separate push-buttons to be depressed simultaneously. The electrical signals must arrive at the safety relay within 0.3 seconds of each other. If one button is pressed earlier, the pressing cycle will not start. This design ensures that the operator's hands are away from the pressing zone when the high-force compression occurs. This feature is a core requirement for safe block manufacturing.

Question 4: Is the hydraulic system of the Germany Zenith Block Machine environmentally safe in case of a leak?

Answer: While the hydraulic system uses standard hydraulic oil, we have built several protective measures to handle potential leaks. The machine's control system will detect a rapid pressure drop, which is indicative of a significant leak, and will initiate a controlled stop. The machine itself is designed with drip trays under the valves and fittings to contain small leaks. We also recommend the use of an environmentally friendly, biodegradable hydraulic fluid (HFC or HFD type) as an option. These fluids have a much lower environmental impact in the event of a spill. Our Germany Zenith Block Machine is designed to be compatible with these fluids.

Question 5: What training does Quangong Machinery Co., Ltd. provide for machine safety?

Answer: We provide comprehensive safety training as part of our commissioning and after-sales support. The training covers: the purpose and operation of each safety feature, how to perform the daily pre-start checks, how to interpret and respond to the machine's safety diagnostic warnings, and the correct procedure for emergency response and isolation. The training is not just a lecture; it includes hands-on exercises where operators and maintenance personnel actually walk through the safety validation procedures. We also provide a digital copy of the safety manual and a series of online safety refresher videos. Our commitment to safety extends beyond just providing the hardware; we ensure the knowledge of its safe operation is transferred to your team.

Conclusion: Safety is an Engineering Foundation, Not an Afterthought

To us, the safety features on a Germany Zenith Block Machine are not a list of bullet points; they are an integrated engineering philosophy. From the redundant hydraulic relief valves to the self-monitoring programmable safety controller, each component is designed to fulfill a specific protective role. We do not just "add safety"; we engineer it into the machine's very core. By choosing a Germany Zenith Block Machine, you are investing in a production system that respects its operators and protects its own longevity. Our commitment to safety is unwavering, and it is a direct reflection of our core values at Quangong Machinery Co., Ltd.

If you are evaluating safety systems for your block production plant or would like a detailed safety presentation for your team, please get in touch. We offer on-site safety audits and training sessions. Our team is ready to demonstrate how the Germany Zenith Block Machine can bring a new standard of safety to your production line. Contact Quangong Machinery Co., Ltd. today to schedule a safety consultation and see the features in action.
