How to Reduce Noise and Vibration in Auxiliary Machinery Operations?

Stand inside a typical industrial plant, and you are immediately immersed in a symphony of mechanical sounds—the whir of motors, the thud of compressors, the clatter of conveyors, and the persistent hum of hydraulic pumps. These sounds are not just background noise; they are indicators of mechanical energy, some of which is productive, but much of which is wasted as vibration and noise. For operators and maintenance engineers, the challenge is not merely to tolerate these sounds, but to actively manage and reduce them. Excessive noise and vibration are not just nuisances; they are symptoms of inefficiency, potential safety hazards, and leading indicators of mechanical failure. The question is not whether to address them, but how to do so effectively and systematically.

Reducing noise and vibration in auxiliary machinery requires a multi-layered approach that addresses the source, the transmission path, and the receiver. At the source, engineers can refine machine design, improve component balance, and select quieter materials. Along the transmission path, they can use vibration isolators, acoustic barriers, and damping treatments. At the receiver, they can provide hearing protection and implement administrative controls. This article will guide you through a comprehensive noise and vibration reduction strategy, covering everything from basic principles of vibration isolation to advanced active noise cancellation techniques. We will explore the physics of sound and vibration, examine the most effective engineering solutions, and provide actionable advice for plant managers and maintenance teams. By the end, you will have a clear roadmap for reducing noise and vibration in your auxiliary machinery operations, improving safety, productivity, and equipment reliability.

Table of Contents

• 1. What Are the Sources of Noise and Vibration in Auxiliary Machinery?
• 2. How Does Vibration Isolation Reduce Transmission to the Structure?
• 3. What Engineering Controls Can Reduce Noise at the Source?
• 4. How Do Acoustic Barriers and Enclosures Reduce Noise Transmission?
• 5. What Role Does Maintenance Play in Controlling Noise and Vibration?
• 6. How Can You Measure and Monitor Noise and Vibration Effectively?
• 7. Frequently Asked Questions (FAQ)
• 8. Conclusion

1. What Are the Sources of Noise and Vibration in Auxiliary Machinery?

To effectively reduce noise and vibration, you must first identify their sources. In auxiliary machinery, the sources are diverse and often interconnected. The most common sources include mechanical imbalance, bearing wear, hydraulic pressure pulsations, aerodynamic noise, and electrical motor hum. Mechanical imbalance occurs when the rotating elements of a machine (such as a motor rotor, a fan blade, or a pump impeller) are not perfectly balanced. This imbalance creates a vibration at the rotational frequency of the machine, which is transmitted through the bearings and housing to the surrounding structure. Bearing wear is another major source of vibration and noise. As bearings wear, they lose their ability to hold the rotating elements in precise alignment, leading to increased clearance and vibration. The vibration frequency typically changes as the bearing wears, providing an early warning of impending failure.

Hydraulic systems, such as those in pumps and valves, generate pressure pulsations that propagate through the fluid and the piping system, creating both noise and vibration. The pulsations are caused by the pumping action, which creates a pressure wave that travels through the hydraulic fluid. These pulsations can cause the pipes to vibrate, amplifying the noise. Aerodynamic noise is generated by fans, blowers, and compressors as air moves through the machinery. The noise is caused by the turbulent airflow and the interaction of the air with the rotating blades. The noise level increases with the speed of the airflow and the number of blades. Electric motors can produce a high-pitched hum due to the alternating magnetic fields. This hum is often a sign of a healthy motor, but it can be amplified by mechanical resonance in the motor housing or the support structure.

Each of these noise sources is a symptom of a specific mechanical or fluid dynamic phenomenon, and each requires a specific approach. A systematic approach to noise and vibration reduction begins with a thorough audit of the machinery to identify the dominant sources. The table below provides a summary of the common sources of noise and vibration in auxiliary machinery, their typical frequency ranges, and the most effective countermeasures.

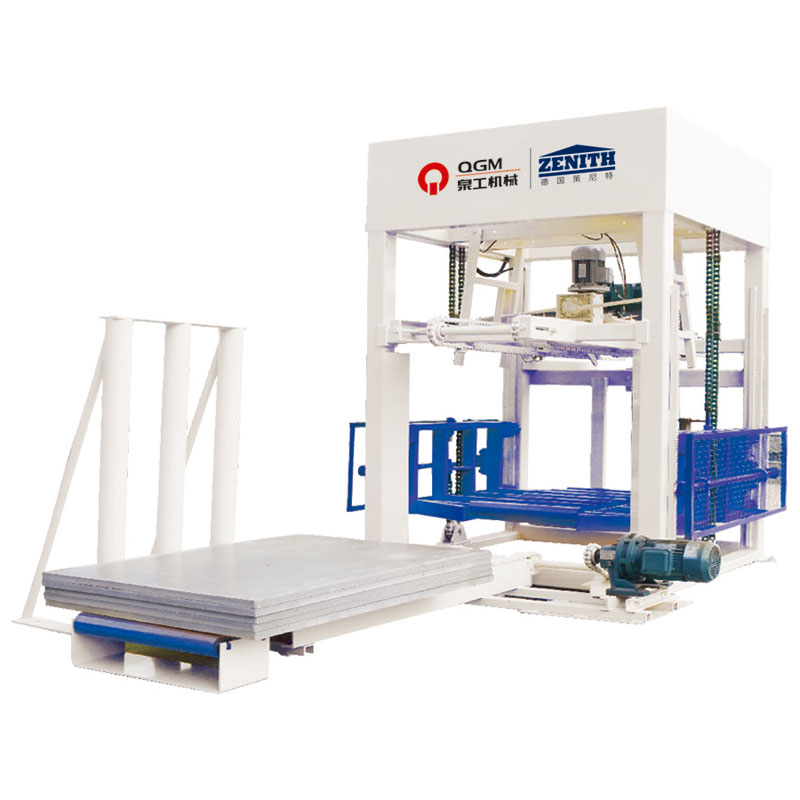

At QGM, our auxiliary machinery products are designed with built-in vibration damping and noise reduction features. We understand that a quiet machine is a more reliable machine, and we incorporate these principles from the earliest stages of design. Our engineering team works closely with customers to identify and address potential noise sources before they become problems.

2. How Does Vibration Isolation Reduce Transmission to the Structure?

Once the vibration is generated, it must be prevented from being transmitted to the supporting structure. This is the role of vibration isolation. The fundamental principle is to use flexible elements (isolators) to absorb the vibration energy before it can travel through the machine frame and into the floor or the rest of the equipment. The effectiveness of an isolator depends on several factors, including the ratio of the isolator's natural frequency to the operating frequency, the damping coefficient of the isolator, and the flexibility of the mounting arrangement. A properly designed vibration isolation system can reduce transmitted vibration by 80-95%, significantly reducing the noise radiated by the structure.

Vibration isolators come in various forms, including elastomeric mounts, pneumatic isolators, and spring isolators. Elastomeric mounts (such as rubber pads or neoprene bushings) are the simplest and most common type of isolator. They are effective at isolating high-frequency vibrations (above 20-30 Hz) and are relatively inexpensive. However, they can degrade over time due to environmental factors such as oil, heat, and ozone. Pneumatic isolators use air-filled bladders to provide a very low natural frequency, making them effective at isolating low-frequency vibrations (below 10 Hz). They are often used in precision machinery applications. Spring isolators use coil springs to provide a low natural frequency and are more durable than elastomeric mounts. They are often used in heavy-duty applications.

The selection of the correct isolator is a critical engineering decision. It is not simply a matter of choosing a commercial product off the shelf; the isolator must be matched to the machine's weight, the operating speed, and the characteristics of the vibration. A common mistake is to use an isolator that is too stiff, which will not provide sufficient isolation, or an isolator that is too soft, which can cause the machine to move excessively and potentially lead to instability. At Quangong Machinery Co., Ltd., our auxiliary machinery products are designed to be compatible with standard vibration isolators. We provide detailed installation guidelines, including isolator selection recommendations, to ensure that the isolation system is effective. Our factory's experience shows that a properly isolated machine will not only run quieter but will also experience less wear and tear, leading to a longer service life.

To illustrate the effectiveness of vibration isolation, consider the following scenario. A 100-horsepower compressor is operating at 1,800 RPM (30 Hz). The compressor is mounted on a concrete floor without any vibration isolation. The vibration from the compressor is transmitted directly into the floor, where it radiates as low-frequency noise. A neighboring office area is subjected to a constant hum. By installing a set of properly tuned spring isolators under the compressor, the vibration transmitted to the floor can be reduced by 90%, effectively eliminating the noise in the neighboring office. The same principle applies to any auxiliary machinery, from pumps and fans to conveyors and motors. The selection and installation of vibration isolators is one of the most cost-effective ways to reduce noise and vibration.

3. What Engineering Controls Can Reduce Noise at the Source?

While vibration isolation prevents the propagation of vibration, it is often more effective to address the source of the noise directly. Source reduction is the most effective approach because it eliminates the problem at its origin, reducing the need for downstream controls. Engineering controls at the source involve modifying the design or operation of the machinery to reduce the generation of noise and vibration. The specific techniques depend on the source of the noise, but common approaches include improving balance, using quieter components, and optimizing operating conditions.

For rotating machinery, such as motors, fans, and pumps, dynamic balancing is one of the most effective source reduction techniques. An unbalanced rotor creates a significant vibration at the rotational frequency. By balancing the rotor to a high precision (ISO 1940 grade G2.5 or better), the vibration can be reduced by up to 90%, dramatically reducing the noise. The balancing procedure involves measuring the vibration of the rotor and adding or removing material to correct the imbalance. Dynamic balancing is not a one-time activity; it should be performed whenever the rotor is repaired or if the vibration levels become excessive. For reciprocating machinery, such as compressors and engines, source reduction often involves balancing the reciprocating masses and using a suitable mounting system to isolate the structure. The use of counterweights and other balancing mechanisms can significantly reduce the vibration generated by the reciprocating motion.

Another important source reduction technique is the use of quieter components. For example, a fan with aerodynamically designed blades can be much quieter than a fan with simple stamped blades. The use of a helical gear rather than a spur gear can reduce gear whine. The use of quieter bearings and seals can also contribute to a reduction in overall noise. In addition to component selection, the design of the machine structure can also influence the noise level. A machine with a stiff, massive frame will vibrate less than a machine with a flexible, lightweight frame. The use of acoustic foam or damping materials on the machine's enclosure can also help to reduce the noise radiated by the housing.

Operating conditions also have a significant impact on noise and vibration. Operating a machine at its optimum speed and load will typically result in lower noise and vibration than operating it at an off-design condition. For example, a pump operating at a flow rate outside its best efficiency point (BEP) will generate more noise and vibration than a pump operating at its BEP. Ensuring that the machinery is operated within its design parameters is a simple but effective source reduction technique. At Quangong Machinery Co., Ltd., our auxiliary machinery products are engineered with built-in noise reduction features. We provide detailed operating instructions to ensure that our customers can operate their equipment at peak efficiency and minimal noise.

4. How Do Acoustic Barriers and Enclosures Reduce Noise Transmission?

In many industrial settings, it is not possible or practical to eliminate the source of the noise entirely. In these cases, acoustic barriers and enclosures provide an effective way to block the transmission of noise from the source to the receiver. The principle is simple: a barrier placed between the source and the receiver will reduce the sound level at the receiver. The effectiveness of a barrier depends on its mass, its density, and its structural integrity. A heavy, dense barrier, such as a concrete wall or a steel plate, is more effective at blocking sound than a light, porous barrier. The barrier must also be complete, with no gaps or openings that can provide a path for sound to travel through.

Acoustic enclosures are a form of barrier that completely surrounds the noise source. An enclosure is typically constructed from sheet metal (often lined with acoustic foam or fiberglass) and is designed to reduce the noise level outside the enclosure. The design of an enclosure requires careful attention to the sealing of any openings, such as air inlets, outlets, and access doors. The enclosure must also provide adequate ventilation to prevent overheating of the equipment. A well-designed acoustic enclosure can reduce the noise level by 20-30 dB, making a substantial difference in the overall noise exposure. In some cases, an enclosure can be designed to be moveable, allowing access to the equipment for maintenance.

The installation of an acoustic barrier or enclosure is a significant engineering project. The barrier must be designed to be self-supporting and must be structurally sound. It must also be designed to allow access to the equipment for maintenance and inspection. The use of modular acoustic panels, which are pre-fabricated and can be quickly assembled, can simplify the installation process. The selection of the appropriate materials for the enclosure is also important. For example, in a high-temperature environment, the enclosure must be made of materials that can withstand the heat. In a corrosive environment, the enclosure must be corrosion-resistant. At Quangong Machinery Co., Ltd., we can provide guidance on the design and selection of acoustic enclosures for our auxiliary machinery products.

To illustrate the effectiveness of an acoustic enclosure, consider a large hydraulic power unit operating at a noise level of 95 dB(A). By installing a well-designed acoustic enclosure, the noise level outside the enclosure could be reduced to 75 dB(A), a reduction of 20 dB. This reduction would make a substantial difference in the safety and comfort of the operators. The table below provides a comparison of the noise reduction achieved by different types of acoustic barriers and enclosures.

5. What Role Does Maintenance Play in Controlling Noise and Vibration?

Noise and vibration are often early warning signs of equipment deterioration. A machine that was once quiet and smooth can become noisy and rough as components wear, lubrication degrades, and clearances increase. Regular maintenance is not just about preventing breakdowns; it is also about identifying and correcting the conditions that lead to excessive noise and vibration. A comprehensive maintenance program can significantly reduce the noise and vibration generated by auxiliary machinery, prolonging equipment life and reducing operating costs. The maintenance activities that are most effective at controlling noise and vibration include lubrication, alignment, balancing, and condition monitoring.

Lubrication is one of the most important maintenance activities for controlling noise and vibration. Insufficient or improper lubrication can lead to increased friction and wear, resulting in excessive vibration and noise. The correct lubricant must be used, and it must be applied at the correct intervals. The lubricant should be checked regularly for contamination and degradation. The use of a high-quality lubricant and a strict lubrication schedule can significantly reduce the noise and vibration generated by bearings and gears. Alignment is another critical maintenance activity. Misalignment of the motor and the driven equipment (such as a pump or a compressor) can cause a significant amount of vibration. The vibration level is a function of the misalignment, the coupling stiffness, and the speed. Regular alignment checks, using a laser alignment tool, can help to prevent excessive vibration.

Condition monitoring is a proactive maintenance technique that involves regularly measuring the vibration and temperature of the equipment. The data is used to track the condition of the equipment and to predict potential failures. For example, an increase in the vibration level of a fan bearing may indicate that the bearing is beginning to fail. By replacing the bearing before it fails, the plant can avoid a sudden breakdown and the associated downtime and repair costs. Condition monitoring is a powerful tool for controlling noise and vibration, as it allows the plant to identify and correct problems before they become serious. At QGM, we recommend that our customers implement a comprehensive condition monitoring program to ensure the reliability and longevity of their auxiliary machinery. Our products are designed for ease of maintenance, with clear access to lubrication points and inspection ports.

The following table provides a summary of the maintenance activities that are most effective at controlling noise and vibration.

6. How Can You Measure and Monitor Noise and Vibration Effectively?

Effective noise and vibration reduction requires a systematic approach to measurement and monitoring. You cannot manage what you cannot measure. The key measurements are sound pressure level (for noise) and vibration acceleration, velocity, or displacement (for vibration). The selection of the measurement system and the analysis technique depends on the nature of the problem and the characteristics of the noise and vibration. For noise, a sound level meter is used to measure the sound pressure level in decibels (dB). For vibration, an accelerometer is used to measure the vibration acceleration. The data is then analyzed to identify the dominant frequencies and amplitudes.

For a thorough noise assessment, a sound level meter with octave band analysis is recommended. Octave band analysis allows you to determine the frequency content of the noise, which is essential for designing appropriate control measures. For example, if the noise is dominated by low-frequency components, a simple acoustic barrier may not be effective; a vibration isolation solution may be needed. For vibration analysis, a spectrum analyzer is used to display the vibration amplitude as a function of frequency. This allows you to identify the frequency components of the vibration and to track changes in the vibration spectrum over time. For example, an increase in the amplitude at a specific frequency can indicate a developing fault, such as a bearing defect. A predictive maintenance program uses this data to forecast the remaining useful life of the machine, enabling timely maintenance and avoiding costly failures.

In addition to handheld meters, many industrial plants now use permanently installed sensors to continuously monitor the health of critical machinery. This is known as online condition monitoring. The sensors are connected to a data acquisition system that collects and analyzes the data, often in real time. An alarm can be triggered if the vibration level exceeds a predetermined threshold, alerting the maintenance team to a potential problem. Online condition monitoring is a powerful tool for reducing noise and vibration, as it allows for early detection and intervention. At QGM, we offer a range of auxiliary machinery products that are compatible with online condition monitoring systems. We can provide guidance on the selection and installation of sensors, as well as the interpretation of the data.

The following table provides a comparison of the different measurement and monitoring techniques.

7. Frequently Asked Questions (FAQ)

Question 1: What is the most common source of vibration in auxiliary machinery?

Answer: The most common source is mechanical imbalance in rotating components, such as motors, fans, and pump impellers. Imbalance creates a vibration at the rotational frequency, which can be transmitted through the bearings to the machine frame and the surrounding structure. Regular dynamic balancing of the rotor is an effective way to reduce this vibration. Our factory's auxiliary machinery products are designed with high-precision balancing to minimize this issue.

Question 2: How can I tell if vibration is caused by a bearing issue versus an imbalance problem?

Answer: The frequency of the vibration is a key indicator. Imbalance typically causes vibration at the rotational frequency (1x RPM). Bearing wear, on the other hand, can cause vibration at multiple frequencies, including harmonics and sidebands around the rotational frequency. A vibration analysis, using a spectrum analyzer, can help identify the specific fault. An increase in the broadband vibration level, especially at higher frequencies, is often an indication of bearing wear. Regular condition monitoring is essential for detecting these issues early.

Question 3: What is the difference between an acoustic barrier and an acoustic enclosure?

Answer: An acoustic barrier is a partial wall or partition placed between the noise source and the receiver. It reduces the sound level at the receiver by blocking the direct path of sound. An acoustic enclosure is a complete enclosure that surrounds the noise source. An enclosure is generally more effective than a barrier because it contains the sound from all directions. However, an enclosure is also more expensive and may require special ventilation and access arrangements.

Question 4: How often should I check the alignment of my auxiliary machinery?

Answer: Alignment should be checked after any installation or repair of the equipment. After that, it should be checked periodically, depending on the operating conditions and the criticality of the equipment. For equipment that is subjected to heavy loads or frequent temperature changes, more frequent alignment checks may be required. A general rule of thumb is to check alignment annually or semi-annually, and to verify alignment after any significant event, such as a machine overhaul or a foundation shift. Our auxiliary machinery products are designed to maintain alignment effectively, but regular checks are still essential.

Question 5: What are the benefits of using a condition monitoring system?

Answer: A condition monitoring system provides several benefits: it allows for early detection of developing faults, reducing the risk of sudden failure and costly downtime; it enables predictive maintenance, which means you can schedule maintenance when it is convenient, rather than responding to emergencies; it helps to optimize the operation of the equipment, as you can identify and correct conditions that are causing excessive wear; and it provides data that can be used to improve the design and maintenance of the machinery. At Quangong Machinery Co., Ltd., we offer a range of auxiliary machinery products that are compatible with condition monitoring systems.

8. Conclusion

Reducing noise and vibration in auxiliary machinery operations is not just a matter of comfort; it is a matter of efficiency, safety, and equipment reliability. A systematic approach that addresses the source, the transmission path, and the receiver can yield significant improvements in the working environment, reduce energy consumption, and extend the life of the equipment. This article has outlined the key principles and techniques for achieving this reduction, from vibration isolation and acoustic enclosures to maintenance and condition monitoring. By implementing these strategies, plant managers and maintenance engineers can create a quieter, safer, and more productive workplace.

At Quangong Machinery Co., Ltd., we are committed to helping our customers achieve the highest levels of performance from their auxiliary machinery. Our products are designed with built-in noise and vibration reduction features, and we provide comprehensive support for installation, operation, and maintenance. Whether you are selecting new equipment or optimizing existing systems, we are here to help.

Contact Quangong Machinery Co., Ltd. today to learn more about our auxiliary machinery products and how we can help you reduce noise and vibration in your operations.
